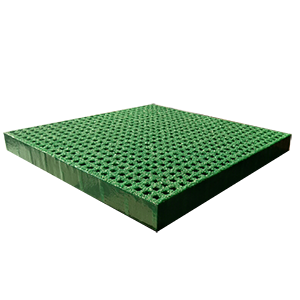

Micro Mesh Molded Grating
Bi-directional load; Aesthetics outlooking; High heal shoes could walk on the smaller mesh; Good application for waterfront; No maintenance needed after installation;...
Details
| ITEM | Height (mm) | Mesh (mm) | Bearing Bar Thickness (mm) | Bearing Bar Direction | Max. Size(mm) | Open Area | Weight (kg/sqm) | Details |
| 1 | 22mm | 40x40 (8x8) | 6.5 / 5.0 | Both | 1527x4047 | 33% | 17.2 | PIC1 |
| 2 | 30mm | 40x40 (8x8) | 6.5 / 5.0 | Both | 1527x4047 | 33% | 18.6 | PIC2 |
| 3 | 38mm | 40x40 (8x8) | 7.0 / 5.0 | Both | 1527x4047 | 33% | 24.1 | PIC3 |

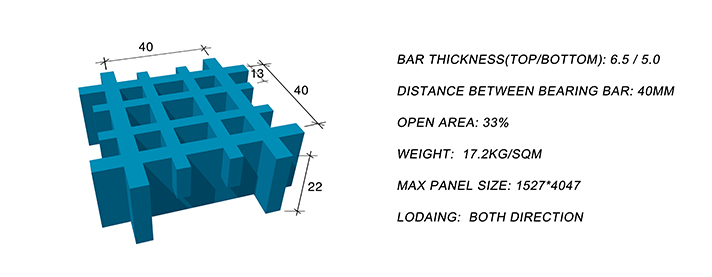

PIC1

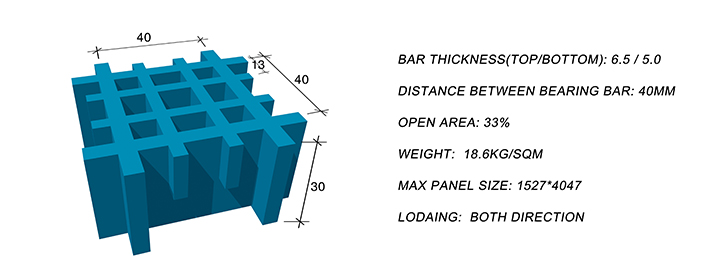

PIC2

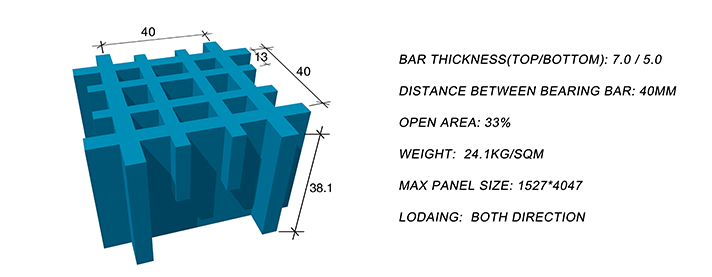

PIC3
