Rectangular Mesh Molded Grating
Uni-directional load; Aesthetics outlooking; No maintenance needed after installation;...
Details
| ITEM | Height (mm) | Mesh (mm) | Bearing Bar Thickness (mm) | Bearing Bar Direction | Max. Size(mm) | Open Area | Weight (kg/sqm) | Details |
| 1 | 25.4mm | 25.4x101.6 | 6.5 / 5.0 | Width | 1220x3660 | 68% | 13.25 | PIC1 |
| 2 | 25.4mm | 25.4x101.6 | 8.0 / 6.0 | Width | 1220x3660 | 64% | 16.5 | PIC2 |
| 3 | 38.1mm | 38.1x152.4 | 8.0 / 6.0 | Length | 1220x3660 | 74% | 15.65 | PIC3 |
| 4 | 38.1mm | 25.4x152.4 | 8.0 / 6.0 | Length | 1220x3660 | 65% | 22.3 | PIC4 |
| 5 | 38.1mm | 38.1x101.6 | 8.0 / 6.0 | Length | 1220x3660 | 73% | 16.4 | PIC5 |
| 6 | 38.1mm | 25.4x50.8 | 12.0 / 10.0 | Length | 1220x1830 | 42% | 35.5 | PIC6 |
| 7 | 50.8mm | 25.4x50.8 | 12.0 / 10.0 | Length | 1220x1830 | 42% | 46 | PIC7 |
| 8 | 38.1mm (treads) | 38.1x152.4 | 7.0 / 5.0 | Length | 571x3660 | 65% | 16.83 | PIC8 |
PIC1

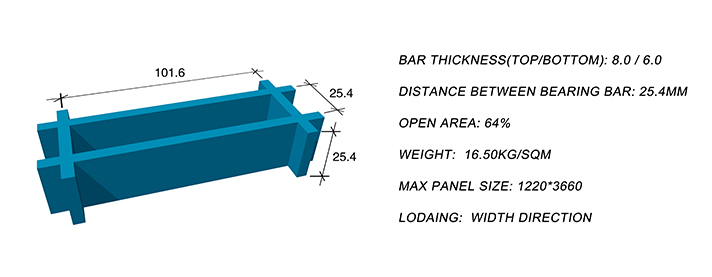

PIC2

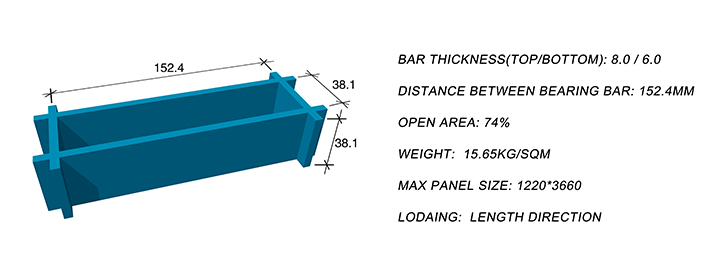

PIC3

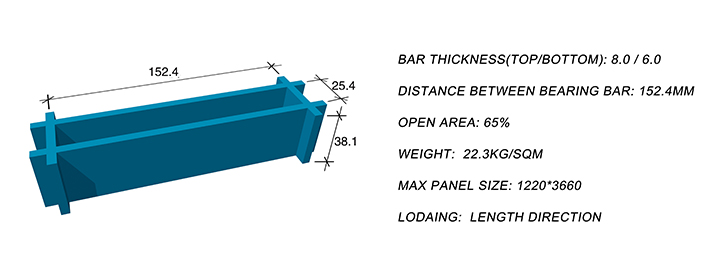

PIC4

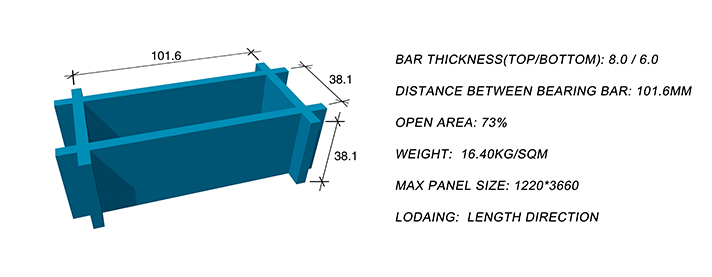

PIC5

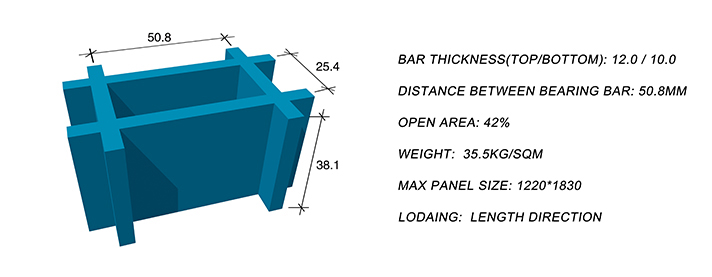

PIC6

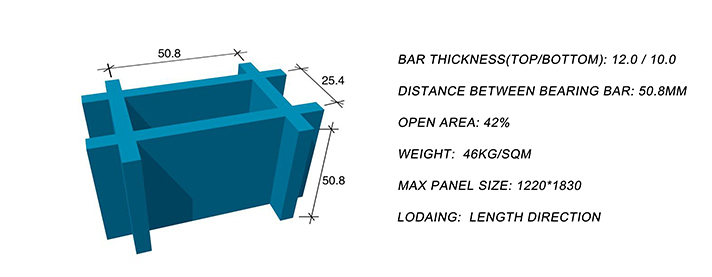

PIC7

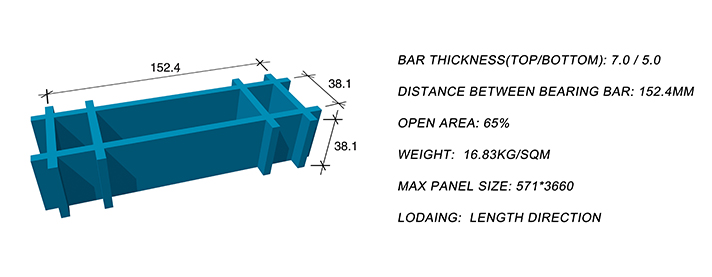

PIC8
